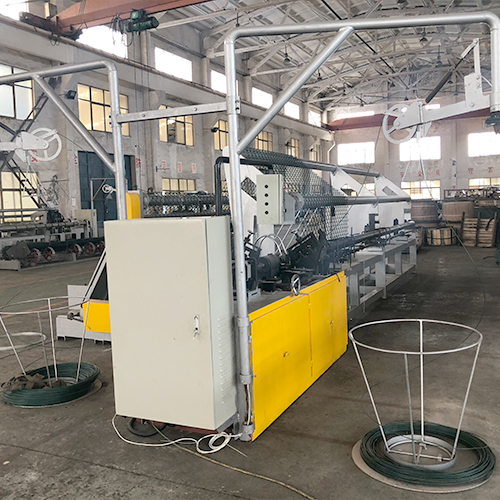

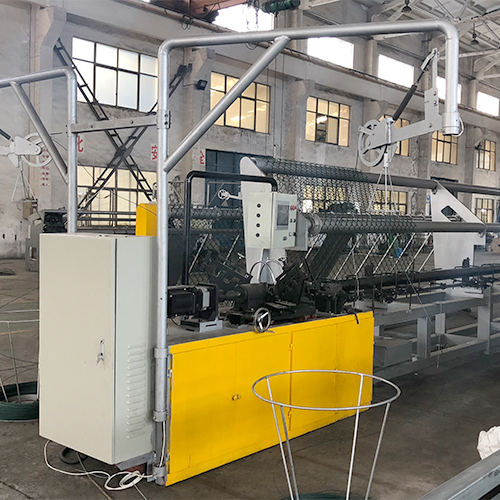

High speed Automatic Chain Link Fence Machine Double wire feeding, the production speed can reach 180m2 per hour, the process is simple, easy to master, one person can operate, saving a lot of human and financial resources. The control system is equipped with international famous brand PLC
Model | LW25/100-4 | ||
Voltage(V) | 380 | ||
Motor(kw) | 8.6 | Servo Motor(kw) | 4.5 |
Cut Motor(kw) | 2 | ||
Twist edge Motor(kw) | 1.5 | ||
Coil net Motor(kw) | 0.55 | ||
Water pump Motor(kw) | 0.07 | ||
Production(m2/h) | 80—180 | ||
Wire diameter(mm) | 2.0 — 4.0 | ||
Mesh size (mm) | 25 — 100 | ||
Max.Netting width (m) | 4 | ||
Overall Size(mm) | main machine: 6700×1430×1800 auxiliary machine:4600×1700×1250 | ||
Weight(kg) | 3500 | ||
