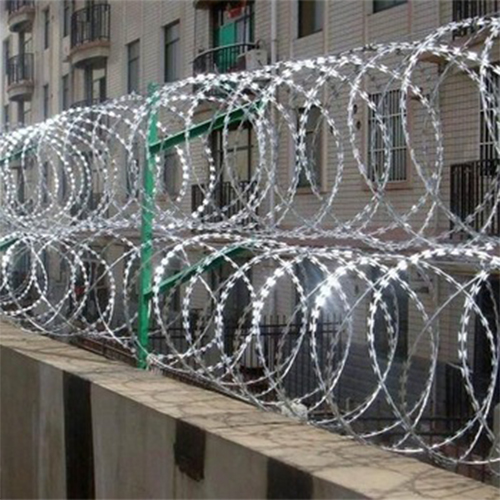

Razor barbed wire machine produce razor barbed wire,it include Razor Strips making Machine and Coiling machine. Razor barbed wire machine with five strips is light-style, easy to operate, high efficiency, can save 20% raw material. It is mainly consists of main machine which can produce the strip plate and coiling machine which can coil the wire into the strip plate. Mainly used in military facilities, communication stations, power distribution stations, border line of the prison, landfill, community protection, schools, factories, farms and other security isolation.



There are two steps in production process, and there are two different machines would finish all work. (Razor Strips making Machine, Coiling Machine)

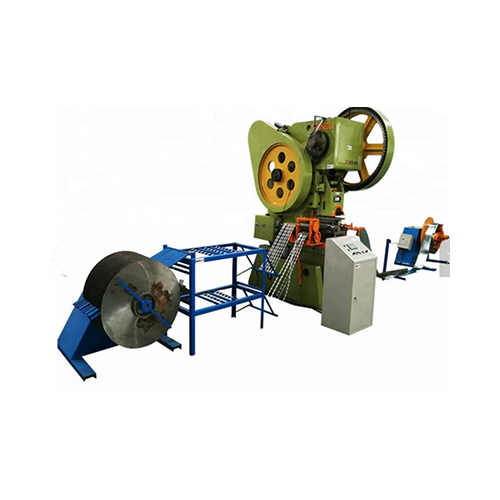

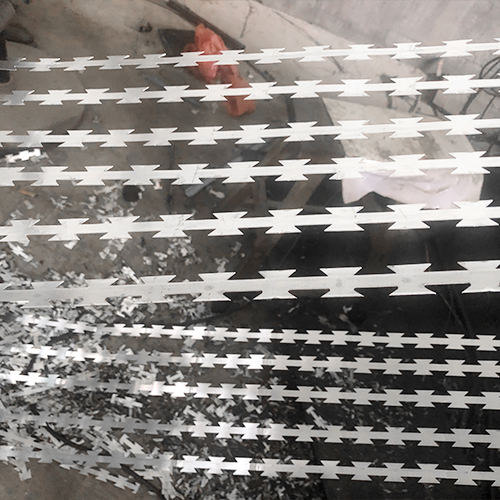

Razor Strips making Machine: This Machine use to cut the steel strip, and make steel strip become razor shape. Different moulds can make different razor shape. Now we always use the model of 5 or 9 output Strips Type, comparing the old one strip mould these models are not only makes production high efficiency, but also can save materials.



Coiling Machine: Coiling Machine is used to coil the razor strip to the steel wire. And then wind up the Razor Barbed Wire to the wire spool.


Punching machine:

Model

Five strip

Nine strip

Voltage

380V, 50Hz or according
  to client’s voltage

380V, 50Hz or according
  to client’s voltage

Power

2.2kw

2.2kw

Producing speed

220-280m/h

220-280m/h

Pressure

40T

63T

Thickness

0.5±0.05(mm)

0.5±0.05(mm)

Weight

1500KG

2200KG

Dimension(mm)

1200×1000×1900

1100×1000×2000


Coiling machine:

     Voltage

    380V, 50Hz

    Power

    1.5kw

    Producing speed

    80 kg/h

    Diameter of wire

    2.5mm

    Weight

    300 kg

    Dimension

    1100mm×750mm×1200mm


Mould Type:

MOULD STYLE:

Barb Length

Barb Width

Barb Spacing

Illustration

R1

12±1mm

13±1mm

26±1mm


R2

12±1mm

15±1mm

26±1mm


R3

18±1mm

15±1mm

33±1mm


R4

22±1mm

15±1mm

34±1mm


R5

28±1mm

15±1mm

34±1mm


R6

30±1mm

18±1mm

34±1mm


R7

60±1mm

32±1mm

96±1mm


R8

65±1mm

21±1mm

100±1mm
