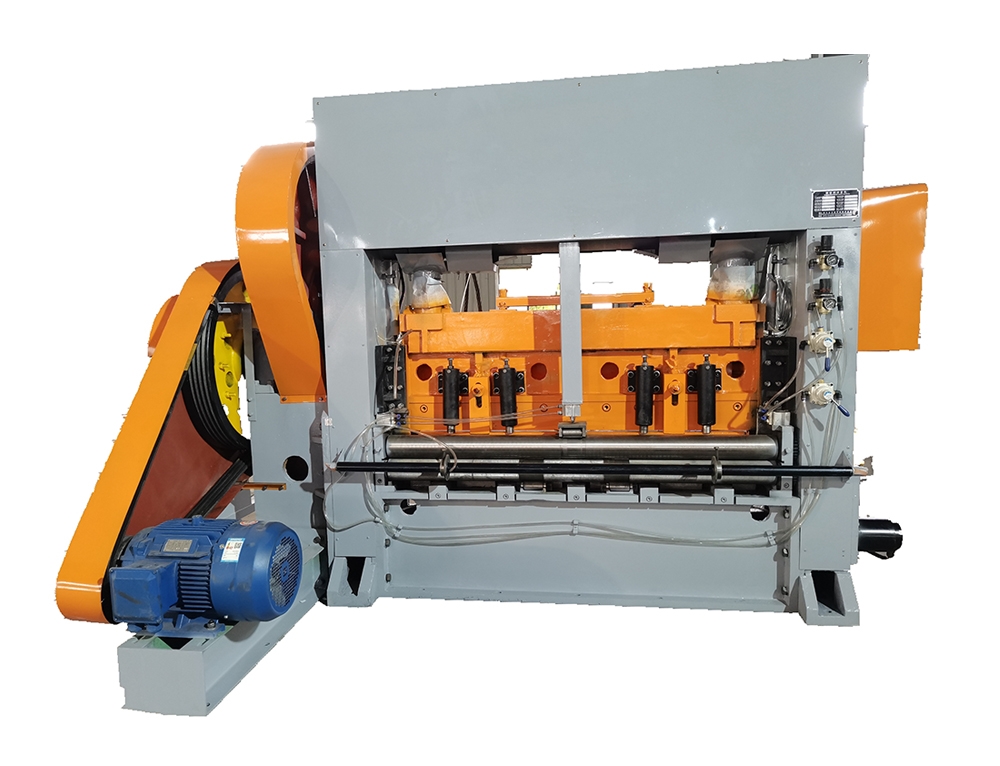

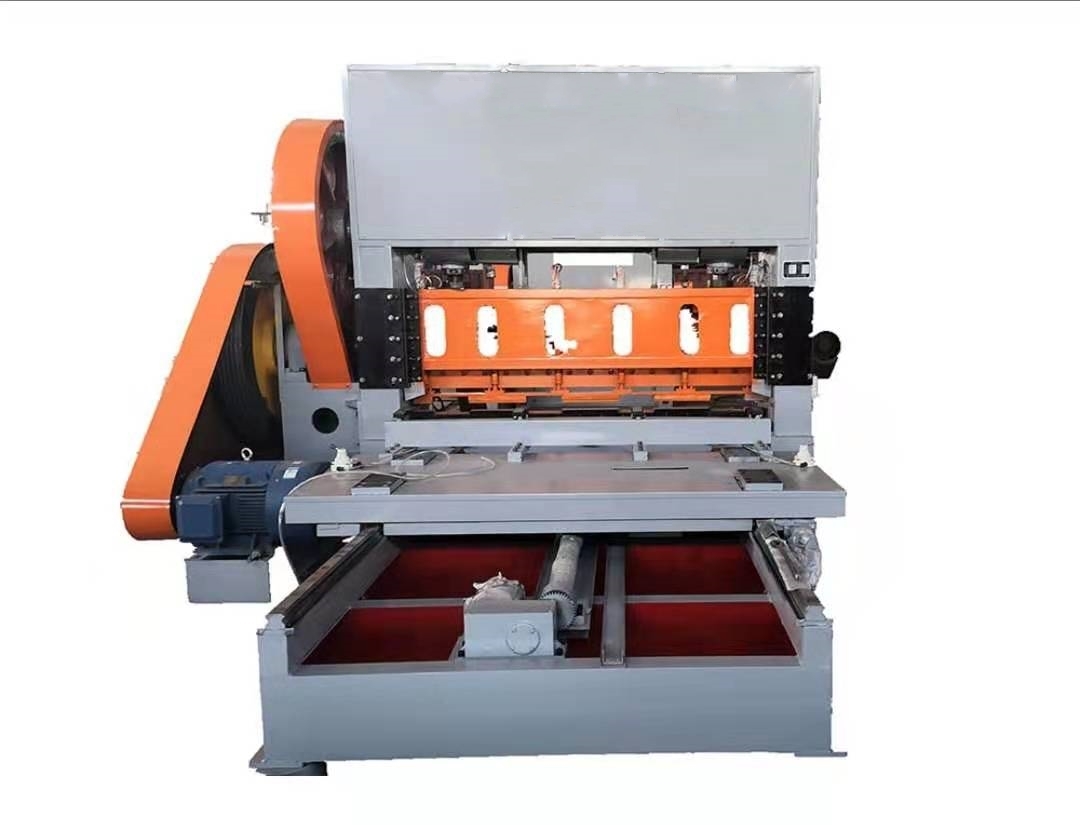

The expanded metal mesh machine working stable, easy to operate, running safely.

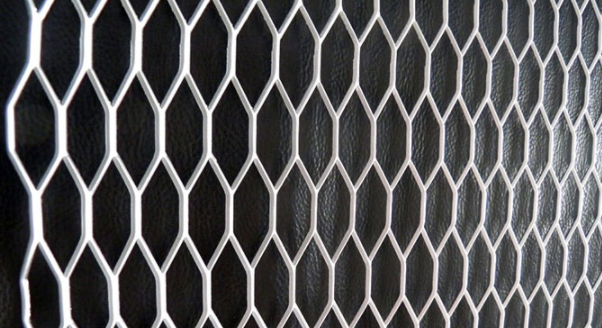

The machine can produce expanded metal mesh which is widely used in construction, hardware, window, door, machine protection etc.
The raw material can be low carbon steel plate, stainless steel plate, aluminum plate, copper plate and so on.
TYPE | JQ25-6.3T | JQ25-16T | JQ25-25T | JQ25-35T | JQ25-40T | JQ25-63T | JQ25-100T | JQ25-160T | JQ25-260T |
Material | Max1.0 | Max1.0 | Max1.5 | Max2.0 | Max2.5 | Max3.0 | Max5 | Max8 | Max10 |
Material | 600 | 1000 | 1250 | 1250 | 1500 | 2000 | 2000/2500 | 2000/2500/3200 | 2000/2500 |
Speed(times/min) | 300 | 220 | 200 | 450 | 110 | 75 | 60 | 50 | 45 |
Feed distance(mm) | 0-1.5 | 0-2.2 | 0-3 | 0-5 | 0-6 | 0-6 | 0-10 | 0-10 | 0-10 |
Mesh opening size LWD(mm) | ≤20 | ≤25 | ≤30 | ≤20 | ≤80 | ≤150 | ≤180 | ≤200 | ≤200 |
Motor(kw) | 2.2 | 3.0 | 5.5 | 15 | 11 | 11 | 18.5/22 | 30 | 55 |
Weight(t) | 1.2 | 2.2 | 3 | 6.5 | 7 | 11 | 13/15 | 18/20/26 | 26/28 |
Size(m) | 1.1*0.75*1.5 | 1.5*0.9*1.6 | 2*1.5*2 | 2.3*1.6*2.3 | 2.9*1.5*1.9 | 3.4*3.4*2.3 | 3.4*3.6*2.65 | 3.5*3.7*2.65 | 3.4*4.5*2.7 |
Expanded Metal Mesh Machine
