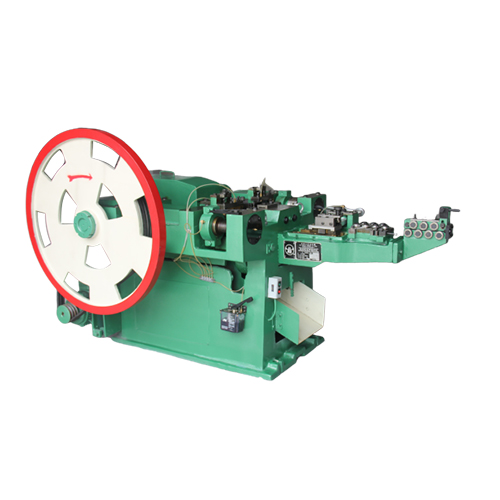

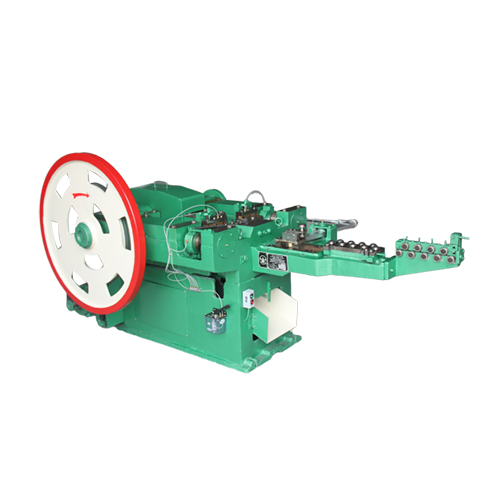

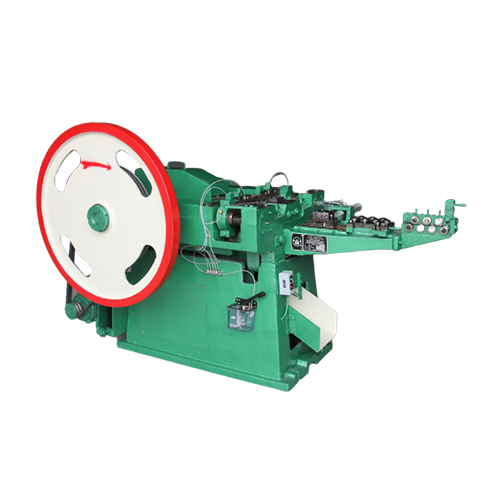

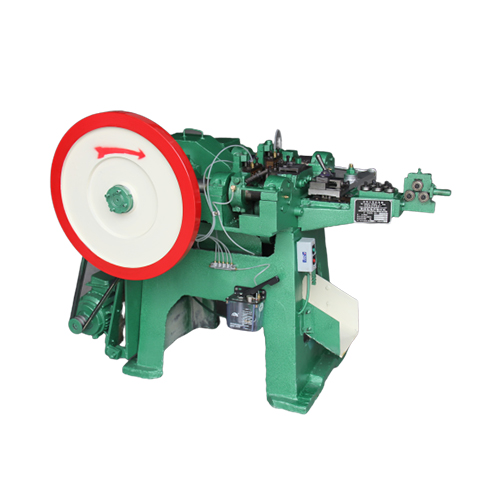

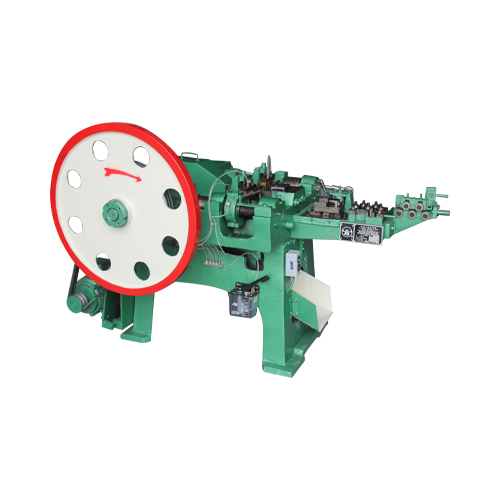

This new type machine adopts plunger and oil pipe lubricating structure to ensure the high working speed, low noise and less impact. Especially, it can make the high quality coil nails used in the nail gun. It has the features of advanced design, compact conformation, and attractive appearance. It is easy and safe to operate.
Type | 1C | 2C | 3C | 4C | 5.5C | 6C |
Max. Diameter | 1.6 | 2.8 | 3.4 | 4.5 | 5.5 | 6.0 |
Mini. Diameter | 0.9 | 1.2 | 1.8 | 2.8 | 4.1 | 4.1 |
Max. Length | 25 | 50 | 75 | 100 | 150 | 180 |
Mini. Length | 9 | 16 | 25 | 50 | 100 | 100 |
Output/ Capactiy | 450 | 300 | 280 | 260 | 220 | 180 |
Motor Power | 1.5 | 2.2 | 3 | 4 | 5.5 | 11 |
Weight | 750 | 950 | 1200 | 1900 | 2500 | 6000 |
Overall dimension | 1350×950 ×1000 | 1650×1150 ×1100 | 1990×1200×1250 | 2280×1420×1330 | 2300×1450×1500 | 3510×1940×2015 |
Nail Making Machine
